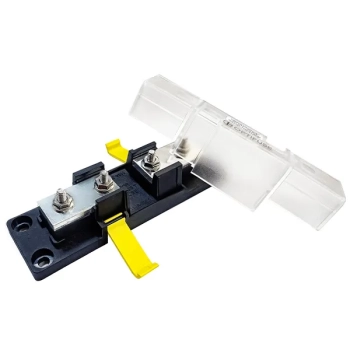

BLT3-400 225-400A Class T Fuse Block

BLT3-400 225-400A Class T Fuse Block

BLT3-400 mounts UL Class T fuses rated from 225A to 400A, providing fast-acting protection combined with high current-limiting capabilities.

Ignition protected when and F3T fuse is installed. Its insulation cover meets ABYC requirements and protects against accidental short circuits.

The four-stud design allows easy installation of large cable lugs without obstruction, while cover breakouts provide wire access in any direction for added flexibility.

Specifications:

• Voltage Rating: 160Vdc
• Max Amperage: 400A
Insulating cover meets ABYC requirements For use with F3T Series (110A~200A)
• Terminal Size: 1/4-20 (Accepts M6 ring terminals)
• Terminal Material: Tin-Plated Copper
• Mounting Blot Size: 1/4” or M6 Hardware
• Ignition Protected: SAE J1171 when F3T series fuse is installed
