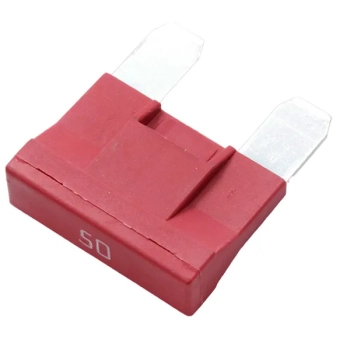

ANX58-UL-50A 50A 58VDC MAXI Blade Fuse UL Rated

ANX58-UL-50A 50A 58VDC MAXI Blade Fuse, UL Rated

58VDC UL recognized blade fuse, designed for heavy-duty applications. Compatible with vehicle electrical power systems designed for the 42V architecture.

This fuse is intended for use in higher voltage systems aimed at reducing the current requirements of modern vehicles with increasing power needs. Raising the voltage helps minimize the size of the wiring, contributing to overall vehicle weight reduction and improved efficiency.

It features industry-standard color coding for easy amperage identification.

• Voltage Rating: 58V DC
• Interrupting Rating: 1000A @ 58 VDC
• Material:
  • Cover: Polycarbonate, UL94V-0
  • Body: Nylon 66 with 25% Fiber Glass, UL94V-0
  • Terminal: Copper Alloy, Tin Plated
  • Element:  Zinc, Tin Plated
• Price per each
