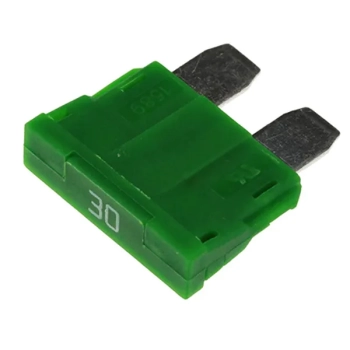

ANR250-UL-30A 30A 250Vac/80VDC High-Voltage UL Blade Fuse

ANR250-UL-30A 30A 250Vac/80VDC High-Voltage UL Blade Fuse

Highest voltage automotive blade fuse available in the market. This UL recognized blade fuse is rated for 80VDC and 250VAC. Designed for vehicles with advanced electrical architectures, including electric vehicles and hybrid systems.

This fuse is ideal for protecting AC voltage automotive systems and onboard equipment from overcurrent situations, such as onboard chargers, auxiliary systems, and HVAC systems.

Additionally, its 80VDC rating makes it compatible with EVs featuring complex power distribution systems and increased power demands from electronic components and accessories.

• Voltage Rating: 80VDC; 250VAC
• Interrupting Rating: 1000A @ 58VDC; 1000A @ 80VDC; 400A @ 250VAC
• Testing: SAE J1284; SAE J2576; ISO 8820-3;
• Body: Rynite (UL94V-0)
• Element Material: Tin Plated Alloy Wire
• Terminals: Copper Alloy, Tin Plated
