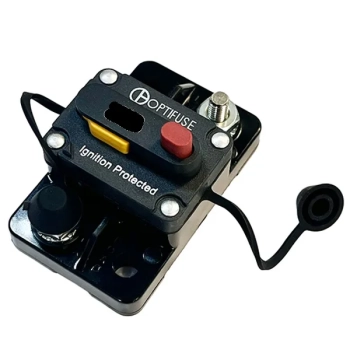

653020 20 Amp 32Vdc Manual Reset Push to Trip Breaker

653020 20 Amp 32Vdc Manual Reset Push to Trip Breaker

• Mid-range amperage (up to 60A) to protect accessory applications in RVs, marine craft, emergency vehicles, and trucks. The interrupt rating meets ABYC requirements for DC branch circuit protection on large battery banks.
• Designed with a surface-mount installation style for secure and direct mounting onto equipment or vehicle surfaces.
• Waterproof and ignition-protected for use in marine engine compartments, meeting the rigorous SAE J1171 and ABYC standards.
• Conforms to the SAE J553 standard for circuit breaker performance.

• Voltage Rating: 32VDC
• Reset Type: Type III - Manual Reset - Push-to-Trip
• Interrupting Rating: 2500A @ 32VDC (ABYC E-11)
• Operation Temperature: -40° F ~ 185° F
• Testing: SAE J553, ABYC E-11
• Mid Range - Waterproof Circuit Breaker
• Terminals Configuration: #10-32 Stud
• Mounting Type: Surface Mount
• Ignition Protected: SAE J1171 | Waterproof IP66
