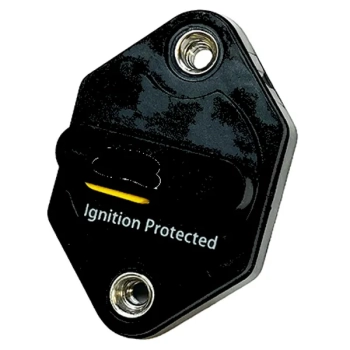

642030 30 Amp 32Vdc Manual Reset Panel-Mount Breaker

642030 30 Amp 32Vdc Manual Reset Breaker

• Mid-range amperage (up to 60A) to protect accessory applications in RVs, marine craft, emergency vehicles and trucks.
• Interrupt Rating meets ABYC requirements for DC branch circuit protection on large battery banks.
• Waterproof and ignition rated for use in marine engine compartments, meeting thorough SAE J1171 and ABYC standards.
• Conforms to SAE J553 standard for circuit breaker performance.

• Voltage Rating: 32VDC
• Reset Type: Type III - Manual Reset
• Interrupting Rating: 2500A @ 32VDC (ABYC E-11)
• Operation Temperature: -40° F ~ 185° F
• Testing: SAE J553, ABYC E-11
• Mid Range - Waterproof Circuit Breaker
• Terminals Configuration: #10-32 Stud
• Mounting Type: Panel Mount; #8-32 threaded inserts
• Ignition Protected: SAE J1171 | Waterproof IP66
