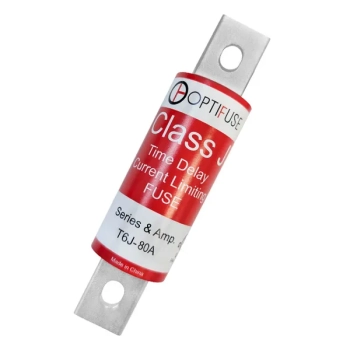

T6J-80A 80A 600VAC UL Class J Time Delay Fuse

T6J-80A UL Class J Time Delay, 600VAC 500VDC 80A Fuse

• UL Listed T6J Class J Fuses from OptiFuse provide superior branch circuit protection for a wide range of industrial and commercial applications, meeting the rigorous performance requirements of UL 248-8.
• Engineered with a compact form factor and dual element time-delay characteristics, the T6J is designed for circuits with inrush currents, such as motor starters and transformers, while also providing reliable current limitation and short-circuit protection.
• Rated at 600VAC / 500VDC with a high interrupting capacity of 200K amp at 600VAC and 100K amp at 500VDC, the T6J stands out as one of the few Class J fuses on the market offering full UL-listed protection at 500VDC across the entire 1A to 600A range.
• Dimensions:
  • 29mm x 118mm
• Voltage Rating
  • 600VAC - 1A~600A
  • 500VDC - 1A~600A
• Interrupting Rating
  • 200kA @ 600VAC
  • 100kA @ 500VDC/li>
• Standards
  • 1A~600A - UL Listed to Standard 248-8, Class J Fuses. File E523284
  • 1A~600A - UL Listed to CSA Standard 22.2 No. 248.8. Class J Fuses. File E523284
• Cross Reference
  • Eaton JDL80
  • Bussmann LPJ-80SP
  • Lillelfuse 0JTD80T
  • Mersen AJT80N
