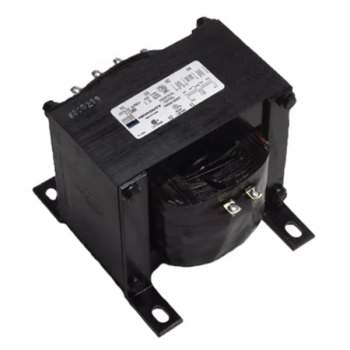

T2000 2000VA Open Style Aluminum Wound Transformer

T2000 2000VA Open Style Transformer

SMT Series is economical and compact with traditional open wound varnished coils. Ratings are from 1 kVA through 5 kVA with Class I80°C insulation system and 115°C rise under full load. SMT transformers provide excellent cost benefits with NEMA regulation characteristics and electrical performance specifications

• 2000VA Aluminum Wound Transformer
• 240 X 480 Volt Primary, 120 Volt Secondary 60 Hz
• 230 X 460 Volt Primary, 115 Volt Secondary 50/60 Hz
• 220 X 440 Volt Primary, 110 Volt Secondary 50/60 Hz
• Dimensions: H 6.25 (158.8) x W 6.75 (171.5) x D 9.13 (231.9)
• Mtg Dimensions: W 5.75 (146.1) x D 6.63 (168.4)
• Slot Size: .44 x .69 (11.2 x 17.5)
• Weight: 38.5 lbs

Features

• Available from 1000–5000 VA, 60 Hz unless noted • Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC
