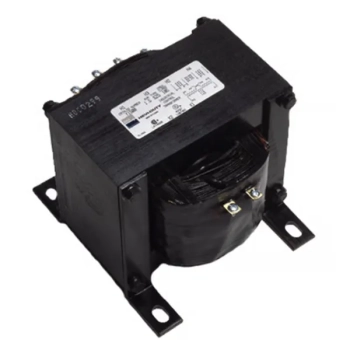

T1000 1000VA Open Style Aluminum Wound Transformer

T1000 1000VA Open Style Transformer

SMT Series is economical and compact with traditional open wound varnished coils. Ratings are from 1 kVA through 5 kVA with Class I80°C insulation system and 115°C rise under full load. SMT transformers provide excellent cost benefits with NEMA regulation characteristics and electrical performance specifications

• 1000VA Aluminum Wound Transformer
• 240 X 480 Volt Primary, 120 Volt Secondary 60 Hz
• 230 X 460 Volt Primary, 115 Volt Secondary 50/60 Hz
• 220 X 440 Volt Primary, 110 Volt Secondary 50/60 Hz
• Dimensions: H 5.63 (143) x W 6.38 (162.1) x D 6.38 (192.1)
• Mtg Dimensions: W 5.31 (134.9) x D 4.25 (108.0)
• Slot Size: .31 x .69 (7.0 x 17.5)
• Weight: 22 lbs

Features

• Available from 1000–5000 VA, 60 Hz unless noted • Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC
