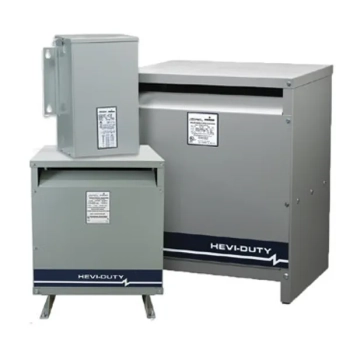

DT651H220S 220KVA 3 Phase Drive Isolation Transformer

 DT651H220S 220KVA 3 Phase Drive Isolation Transformer

For SCR (Silicon Control Rectifier) variable speed motor drive applications, a transformer is needed to magnetically isolate the incoming line from the motor drive. The transformer must also provide a voltage change to match the required voltage of the SCR Drive. Standard designs are delta primary and wye secondary to match the common power sources required in most three phase rectifier circuits.

• 220kVA 200 Drive Horse Power
• 460 D Primary, 460Y/299 Secondary 60Hz
• WS11 Weather shields come in a set of two and must be ordered separately
• Dimensions: H 46.0 (1168.4) x W 36.0 (914.4) x D 24.0 (609.6)
• Weight: 1280 lbs

Applications

• Isolation minimizes load disturbances caused by the SCR drive
• UL Listed/NEMA Type 3R enclosures when used with optional weather shield
• Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the National Electric Code
• Shielding attenuates line to ground noise
• 10 year limited warranty
