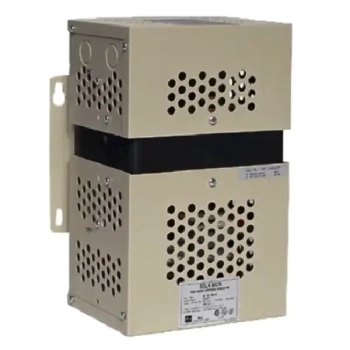

63-28-310-8 10,000VA MCR Hardwire Line Conditioner

63283108 10,000VA MCR Single Phase 60Hz Hardwire Line Conditioner

MCR Series provides excellent noise filtering and surge protection to protect connected equipment from damage, degradation or misoperation. Combined with the excellent voltage regulation inherent to our ferroresonant design, they can increase the actual Mean Time Between Failure (MTBF) of protected equipment. These units are a perfect choice where dirty power caused by impulses, swell, sags, brownouts and waveform distortion can lead to costly downtime because of damaged equipment.

• Voltage Input: 208, 240, 480
• Voltage Output: 120, 208, 480
• Dimensions: H 28.0 (711) x W 26.0 (660) x D 9.0 (229)
• Weight: 446 lbs

Applications

• Industrial automation and control equipment PLCs
• Machine tools
• Computer loads and electronic equipment
• Robotics
• Semiconductor fabrication equipment

Features

• ±3% output voltage regulation
• Noise attenuation
  • 120 dB common mode
  • 60 dB transverse mode
• Surge protection tested to ANSI/IEEE C62.41 Class A & B waveform
  • - V let through typical
• Acts as a step-up or step-down transformer
• Harmonic filtering
• Hardwired
• Galvanic isolation provides exceptional circuit protection
• 5 year typical MTBF
• No maintenance required
