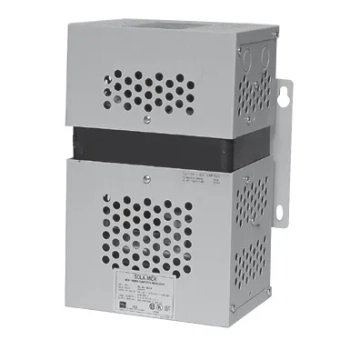

23-23-220-8 2000VA CVS Voltage Regulator

23232208 2000VA CVS Single Phase Voltage Regulator

The CVS recreates a well regulated sinusoidal waveform that is well isolated from input disturbances including:

• Impulses, Swells, Brownouts, Sags, Severe waveform distortion
• Voltage Input: 120, 208, 240, 480
• Volatge Output: 120, 240
• Dimensions: H 18.00 (457.2) x W 13.0 (330.2) x D 10.0 (254.0)
• Weight: 111 lbs

Applications

• Industrial automation and control equipment PLCs
• Analytical laboratory and factory automating equipment
• Photo processing equipment
• Sound/recording systems
• Broadcast equipment

Features

• Superior voltage regulation of ±1%
• Surge protection tested to ANSI/IEEE C62.41, Class A & B waveform
• Harmonic filtering
• Hardwired
• Acts as a step-up/step-down transformer
• Glavanic isolation provides exceptional circuit protection
• 25 year typical mean time between failure
• No maintenance required
