SCP30D524B-UDN Dual 5Vdc/24Vdc Slim LinePower Supply

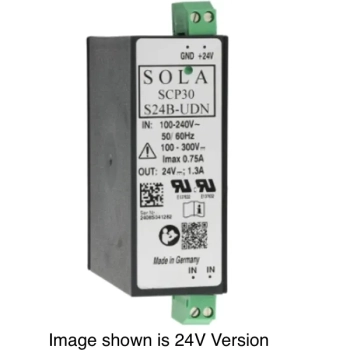

SCP30D524B-UDN Low Profile Power Supply

SCP switchers are compact, rugged power supplies designed to power many of your industrial control and instrumentation devices and equipment, with high reliability and tight regulation through the most difficult factory floor conditions. “User friendly” applies to these unique power supplies that feature easy-to-install DIN rail and chassis mounting. Terminations are also easy to access (AC and DC terminations are well separated) and simple to wire. Safety is another aspect where the SCP distinguishes itself. The encapsulated design meets IP20 specifications, and the wide range of voltages will reliably support almost any low power device in your cabinet or system for years to come.

• Output: Dual O/P 5Vdc 3.0A & 24Vdc 0.6A
• Input Voltage: 85-264Vac, 100-300Vdc 50/60HZ
• Dimensions: H 4.72 x W 1.29 x D2.68 in (120.0 x 33.0 x 68.0 mm)
  • (Takes up 1.29 in or 33.0 mm on DIN rail)

FEATURES

• DIN Rail or Chassis Mount
• Rugged, encapsulated design to resist environment
• IP20 protection
• Many output voltages, 3.3-48 Volts; single, dual, triple
• Five year limited warranty

Simple snap-on for DIN Rail TS35/7.5 or TS35/15

• M3 screw clamp terminations
• Chassis mounting possible on -UDN Low Profile versions by removing DIN clips (simply unscrew at the back of the unit)
