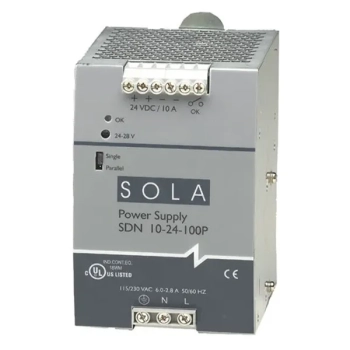

SDN10-24-100P 240W 10A 24V PowerBoost Power Supply

SDN10-24-100P SDN-P PowerBoost Din Rail Series Power Supply

SDN DIN Rail power supplies provide industry leading performance. Sag Immunity, transient suppression and noise tolerant, the SDN series ensures compatibility in demanding applications. Power factor correction to meet European directives, hazardous location approvals and optional redundant accessories allow the SDN series to be used in a wide variety of applications. Wide operation temperature range, high tolerance to shock and vibration and reliable design make the SDN series the preferred choice of users

• Output 240W 10A 24VDC,
• Nominal Input Voltage, AC: Auto Select 115/230 Vac, 50/60 Hz Input
  • AC Range: 85-132/176-264Vac
  • DC Range: 210-375Vdc
• Dimension: H: 4.88 (124) W: 3.26 (83.0) D: 4.55 (116)
• PowerBoost™ — Powers high inrush loads without shutdown or foldback
• Auto select or universal input for no manual switching
• Industrial-grade design
• -10 °C to +60 °C (+14 °F to +140 °F) operation without derating
• Indefinite short circuit, overvoltage and overtemperature protection
• Rugged metal case and DIN rail clips
• NEC Class 2 rating on SDN4-24-100LP and SDN2.5-24-100P
• Narrow width on rail for space critical applications
• High MTBF and reliability
• Limited five year warranty
