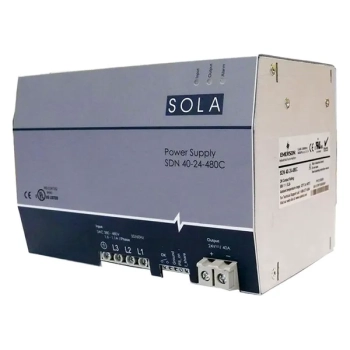

SDN40-24-480C 960W 40A 24V 3 Phase Compact Power Supply

SDN40-24-480C SDN-C Performance Compact Din Rail Series 3 Phase Power Supply

High performance specifications and extensive international certifications ensure that the SolaHD SDN-C is suitable for the most extreme environments, including hazardous locations and off-shore applications. Features like wide operating temperature range, power boost capability, and adjustable output voltage ensure reliable operation in the harshest industrial environments. Parallel operation, extensive LED diagnostics, and universal AC or DC input voltage simplify installation and maintenance. For added reliability, the SDN-C power supplies can be used with the SolaHD Redundancy modules to provide redundant power supply operation.

• Output 960W 40A 24VDC,
• Nominal Input Voltage, AC: 380-480 Vac (342-528 Vac) 3 Phase
• Nominal Input Voltage DC: 600Vdc
• Dimension: H: 4.85 (123) W: 7.09 (180.0) D: 4.66 (119)
• Extensive international hazardous location certifications, including Class I, Zone 2, ATEX, IECEx, CCC, UKCA. Hazardous location temperature code (T-Code) rating of T4.
• International off-shore certifications, including ABS and DNV
• PowerBoostTM enables short duration overload capability, to start loads with high inrush current
• Three LEDs provide extensive diagnostics
• Dual output terminals for convenience in wiring
• DC OK relay to provide diagnostic information to a PLC, controller, or monitoring system
• Universal AC and DC input voltages to accommodate global requirements
• Wide operating temperature range accommodates both extreme hot and extreme cold environments
• Active Power Factor Correction on most models
• Parallel operation capability standard
• Supports redundant power supply operation using optional SDN™ Redundancy modules
• Conformal Coated versions (“X” suffix) available for Corrosion Resistance, meets G3 Harsh Rating per ISA 71.04 Group A.
• 5-year limited warranty
