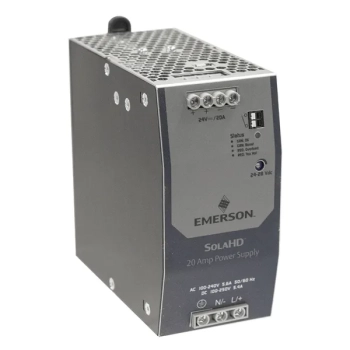

SDN20-24-100D 480W 20A 24V High Performance Power Supply

SDN20-24-100D SDN-D High Performance Din Rail Series Power Supply

the SDN-D high performance DIN rail power supply boasts one of the highest efficiencies available in the market today. Higher efficiency means less heat is generated, potentially extending the life of all components in the enclosure. Extensive diagnostic monitoring capabilities are possible with the optional SCM network communication module, which utilizes popular industrial network protocols to provide critical power supply data to computers, PLCs, DCSs HMIs, and other devices. For applications requiring even higher reliability, combine the SDN-D with SDN redundancy modules. With its extensive capabilities, compact design, and notable global certifications, the SDN-D is the ideal solution for use in harsh environments, extreme temperatures (–40 °C to +70 °C), and hazardous locations worldwide.

• Output 480W 20A 24VDC,
• Nominal Input Voltage, AC: 100-240 Vac (90-264 Vac)
• Nominal Input Voltage DC: 120-250Vdc (90-275 Vdc)
• Dimension: H: 4.8 (123) W: 2.4 (60.0) D: 5.0 (127)
• High performance unit in a compact package
• Optional network communications modules provides important diagnostic information to controllers, HMI, and computers
• Continuous Power Boost: Up to 120% continuous, for temperatures up to 50 °C
• Multi-turn potentiometer simplifies accurate setting of output voltage
• Extensive international hazardous location certifications, including Class I Zone 2, ATEX, and IECEx. Hazardous location temperature code (T-Code) rating of T4
• Inductive Load Power Boost additional short term power, to assist in starting loads with high inrush current
• Dual output terminals for convenience in wiring
• DC OK relay to provide diagnostic information to a PLC, controller, or monitoring system
• Circuit Interruption Power Boost provides short duration peak current sufficient to trip properly-sized load side fuse or circuit breaker in the event of a load fault
• Universal AC and DC input voltages to accommodate global requirements
• Wide operating temperature range accommodates both extreme hot and extreme cold environments
• Active Power Factor Correction greater than 0.98
• Parallel operation capability standard
• optional SDN™ Redundancy modules
• 5-year limited warranty
