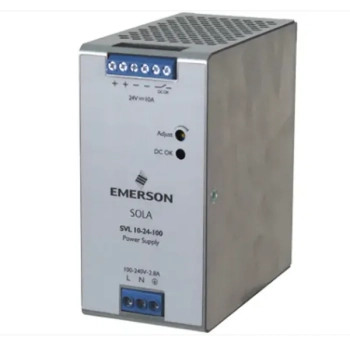

SVL10-24-100 240W 10A 24V AC/DC Power Supply

SVL10-24-100 SVL Essential Din Rail Series Power Supply

SVL Series power supplies are perfect for high volume, controlled environment applications where essential features are the only requirement. When space inside an enclosure is at a premium, their small footprint makes these power supplies an excellent alternative to embedded open frame switchers. The DIN rail mounting capability provides quicker and easier installation while allowing for design flexibility.

The DIN rail mounting capability provides quicker and easier installation while allowing for design flexibility. Ideal applications for the SVL include test and measure equipment, scanners, instrumentation, printers peripheral, ATM machines, semiconductor fabrication equipment, and vending machines.

• Single Output 240W 10A 24VDC,
• Input Voltage, Nominal: 100-240 Vac, 50/60 Hz, 120-375Vdc
• Dimension: H: 4.87 (123.6) W: 2.36 (60.0) D: 4.63 (117.6)
• Universal Input
• Convection cooling
• Protection
  • Short Circuit
  • Overload
  • Over Voltage
  • Over Temperature
• DC OK LED
• Blinking OCP Diagnostic
• DC OK Relay for >120 Watts models
• Two year warranty
