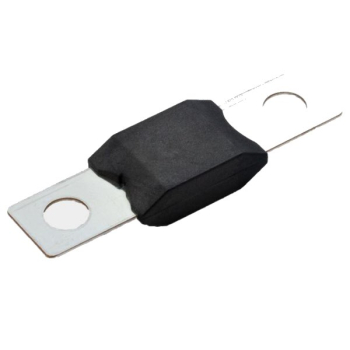

MGGA-50A-B 50A 32VDC TD Mega Fuse, Plastic Body

MGGA-50A-B 50A 32VDC Time Delay Mega Plastic Body Fuse

Provides slow acting protection when exposed to temporary overload currents that might occur with DC battery powered equipment, whose heavy-duty loads can lead to power surges.

Plastic body cost effective solution but no visibility of the fuse element.

Manufactured to bolt onto mountings for a secure hold that withstands vibrations.

• Voltage Rating: 32V DC
• Interrupting Rating: 2000A @ 32 VDC
• Body:Nylon 66 UL94V0 with glass fiber
• Terminals: Copper with Tin Plated, 5/16" (M8) terminals
• Operation Temperature: -20°C ~ 125°C
• Testing: SAE
• MEGA style
• 50.8mm center-to-center bolt-on
• Package of one
