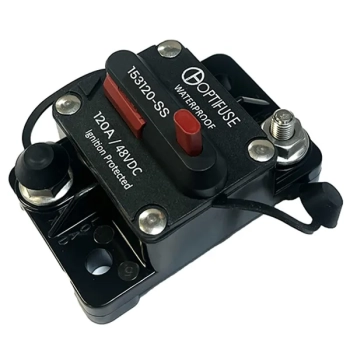

153120-SS 120 Amp 48V Manual Reset IP67 Circuit Breaker

153120-SS 120 Amp 48V Manual Reset IP67 Circuit Breaker

As the only high-amperage circuit breaker on the market with both stainless steel nuts and rivets, the 153-SS is engineered for the harshest conditions in marine environments or heavy-duty trucks.

Commonly installed alongside a vehicle's battery as the primary source of power protection. The 3,000A Interrupt Rating meets ABYC requirements for DC main circuit protection on battery banks up to 1,100 CCA capacity.

Waterproof and ignition rated for use in marine engine compartments, meeting thorough SAE J553 standards.

• Reset Type: Type III - Manual Reset
• Terminals Configuration: 1/4”-28 Stud
• Mounting Type: Surface Mount
• Ignition Protected: SAE J1171
• Ingress Protection: IP67
