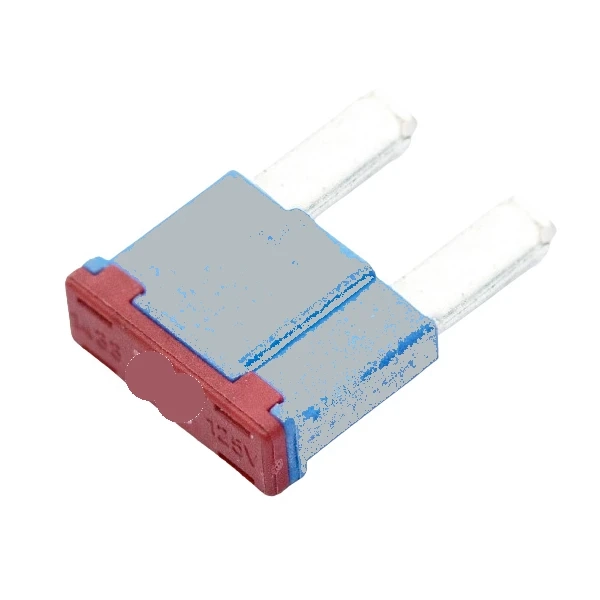

ANM125-M-2A 2A 125VDC Mini Blade Fuse

ANM125-M-2A 2A 125VDC Mini Blade Fuse

125VDC blade fuse, compatible with vehicle electrical power systems designed for the 42V architecture. Smaller than standard Regular (ATO/ATC style) blade fuses, this fuse can control more circuits by occupying less space.

Ignition protected and filled with sand to cool vaporized metal that forms when the fuse blows, thus preventing it from ionizing and in turn stopping an arc from carrying current after the fusible link has melted.

This fuse is intended for use in higher voltage systems aimed at reducing the current requirements of modern vehicles with increasing power needs. Raising the voltage helps minimize the size of the wiring, contributing to overall vehicle weight reduction and improved efficiency.

It features industry-standard color coding for easy amperage identification.

• Voltage Rating: 125V DC
• Interrupting Rating: 1000A @ 125 VDC
• Body: Nylon with 25% Fiberglass
• Cover: Nylon with 25% Fiberglass, Dark Red
• Terminals: Copper alloy, gal. Sn
