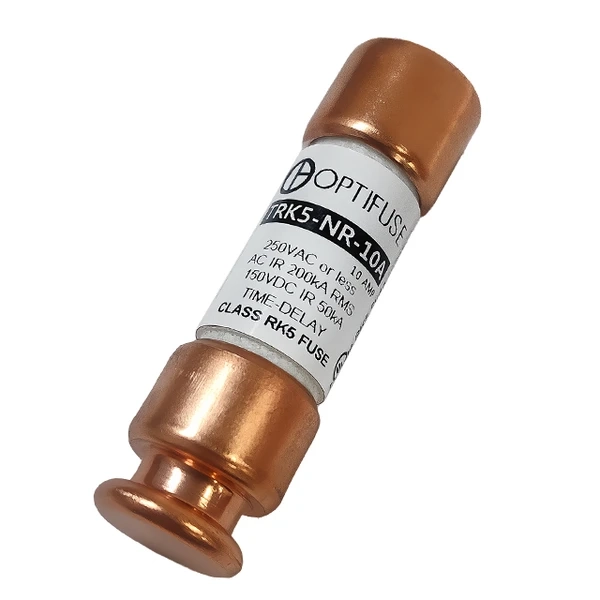

TRK5-NR-10A 10A UL 250VAC/150VDC Class RK5 Time-Delay Fuses

TRK5-NR-10A 10A UL 250VAC/150VDC Class RK5 Fast Fuses

• UL listed Class RK5 fuses are the industry's most popular choice for motor circuit protection. These dual-element fuses offer superior time-delay performance, making them ideal for circuits that experience temporary motor overloads and surge currents, providing both high-performance short-circuit and overload protection.
• The rejection feature allows Class RK5 fuses to be installed in specialized fuse clips and holders that prevent the use of older, less reliable fuse types.
• It is rated at 250VAC / 150VDC with a 200K amp AC interrupting capacity and 50K amp DC interrupting capacity. Current ratings range from 10A to 60A.
• Dimensions:
  • 50.8mm x 12.6mm
• Voltage Rating
  • 250VAC - 10A-60A
  • 150VDC - 10A-60A
• Interrupting Rating
  • 200kA at 250VAC
  • 50kA at 150VDC
• Standards
  • 10A-60A - UL Listed to Standard 248-15, Class R Fuses. File E523284
• Cross Reference
  • Eaton Bussmann FRN-R-10, ECNR10
  • Lillelfuse FLNR010
  • Mersen TR10R
