RAAB3648BK Rackmount 36-48 Adjustable Angle Bracket

RAAB3648BK Rackmount 36-48 Adjustable Angle Bracket

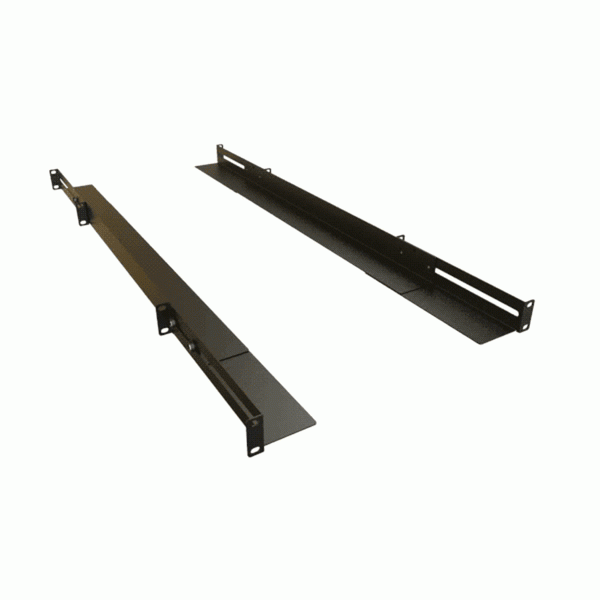

The Rackmount Adjustable Angle Bracket (RAAB) accommodates the weight of heavy equipment that isn't installed on a rack. The RAAB, which comes in two depth ranges, can support up to 200 lbs and vary from 24 to 48 inches deep.

• Constructed in 16-gauge steel.
• Angles mount to 19", 23", or 24" EIA rack mounting rails.
• Requires two pairs of mounting rails.
• Designed to support equipment such as servers, switchgear, and computer/server chassis on their side.
• The free-floating design easily adjusts in depth to accommodate different equipment dimensions.
• Two adjustable depth options.
• Sold in pairs.
• Finished in smooth RAL9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
• Requires mounting hardware.
• 200 lbs (91 kg) load rating.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
• Min Depth 35.7 / Max Depth 48
• Height 1.72 Width 3.14
