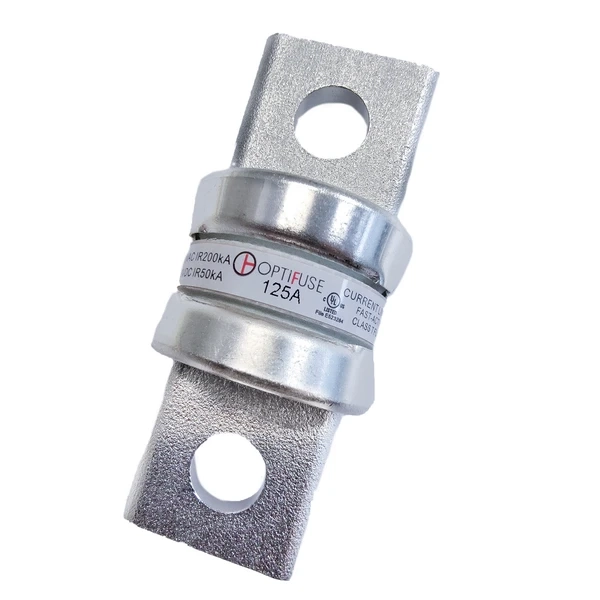

F3T-125A 125A UL 300VAC/160VDC Class T Fast Fuses

SKU: F3T-125A
Manufacturer: Optifuse
Manuf Part#: F3T-125A
GTIN#:
Price:
$54.93
Quantity: 3+25+
Price: $49.43$43.15
Qty: - +

F3T-125A 125A UL 300VAC/160VDC Class T Fast Fuses

  • UL listed Class T fuses provide fast acting protection combined with high current limiting capabilities for branch circuit protection (UL 248-15). They are the most compact option available for ratings exceeding 30A.
  • Class T fuses are designed to protect devices such as load centers, panelboards, switchboards, measuring centers, and other surge-sensitive equipment from both overload and short circuit currents. They can be found in systems such as pumps, HVAC, and power sources.
  • Dimensions:
    • 26.9mm x 62mm
  • Voltage Rating
    • 300VAC - 1A-1200A
    • 160VDC - 1A-1200A
  • Interrupting Rating
    • 200kA at 300VAC (1A-1200A)
    • 50kA at 160VDC (1A-1200A)
  • Standards
    • 1A-400A - UL Listed to Standard 248-15, Class T Fuses. File E523284
    • 450A-1200A – UL pending of approval
  • Cross Reference
    • Eaton Bussmann JJN-125
    • Lillelfuse JJLN125
    • Mersen A3T125
