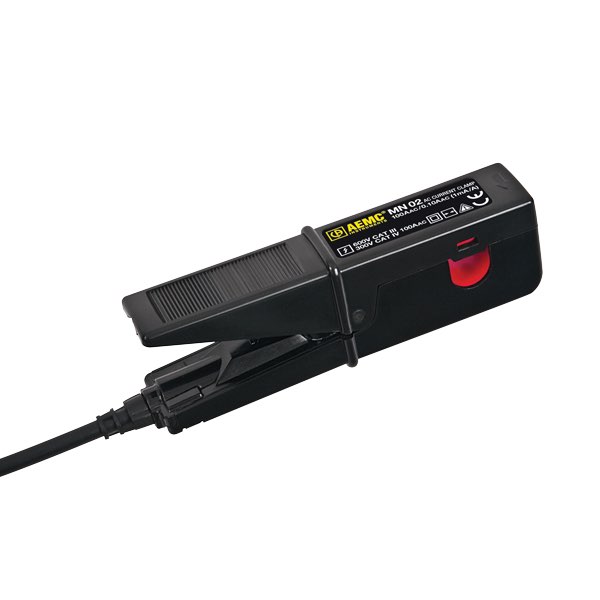

MN02 AC Current Probe (100A, 1mA/A, Lead, 1% Accuracy)

MN02 AC Current Probe (100A, 1mA/A, Lead, 1% Accuracy)

Small and compact, the AC Current Probe Model MN02 is the ideal complement for any multimeter to measure AC currents in low-power secondary or industrial applications. When used with an AC Ammeter, it allows you to directly read the current measured when the probe is clamped around one of the carrying conductors.

• Clothes pin shape makes them ideal for use in tight areas, such as breaker panels, controller panels or outlets
• Jaw opening accommodates conductors up to 0.39 in diameter
• Measurement ranges: 50 mA to 100 A (1 Ω load) 50 mA to 90 A (10 Ω load)
• Designed for DMMs, loggers, recorders and oscilloscopes
• (48 to 10,000) Hz frequency range
• 1 mA/A from (1 to 10) Ω load output signals
