SR759 AC Current Probe (1A, 10A, 100A, 1000A, mV/A, Lead) HA*

SR759 AC Current Probe (1A, 10A, 100A, 1000A, mV/A, Lead) HA*

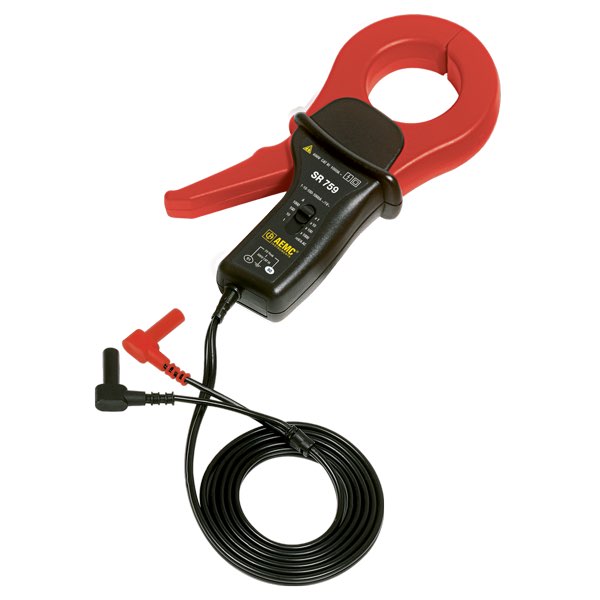

The SR759 probe is a range selectable probe that offers four switch selectable ranges: 1, 10, 100 or 1000A. This probe has a voltage output proportional to the current measured in the jaw of the probe. The SR759 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs compatible with DMMs and other instruments. The high accuracy, high sensitivity and low phase shift makes this probe an excellent choice for use in a wide range of power quality applications, including very low or leakage current measurements.

• Measurement range of 1 mA to 1200 Aac
• Large jaw opening accommodates conductors up to two 500 MCM conductors
• Ergonomic design and easy operation
• Low phase shift for power measurements
• Available with mA output signals
• Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
• UL approved
