SR752 AC Current Probe (1000A, 1mV/A, Lead) HA*

SR752 AC Current Probe (1000A, 1mV/A, Lead) HA*

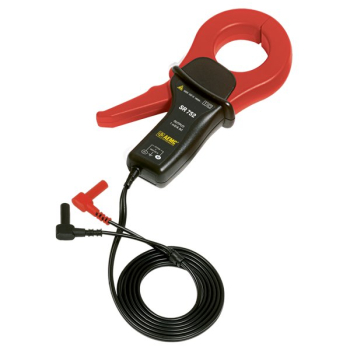

The SR752 is a general purpose 1000AAC current probe designed for use with DMMs, loggers and other instruments that have voltage inputs. It has a voltage output proportional at the rate of 1mV per amp to the current measured in the jaw of the probe. The SR752 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.

• Measurement range of 1 mA to 1200 Aac
• Large jaw opening accommodates conductors up to two 500 MCM conductors
• Ergonomic design and easy operation
• Low phase shift for power measurements
• Available with mA output signals
• Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
• UL approved
