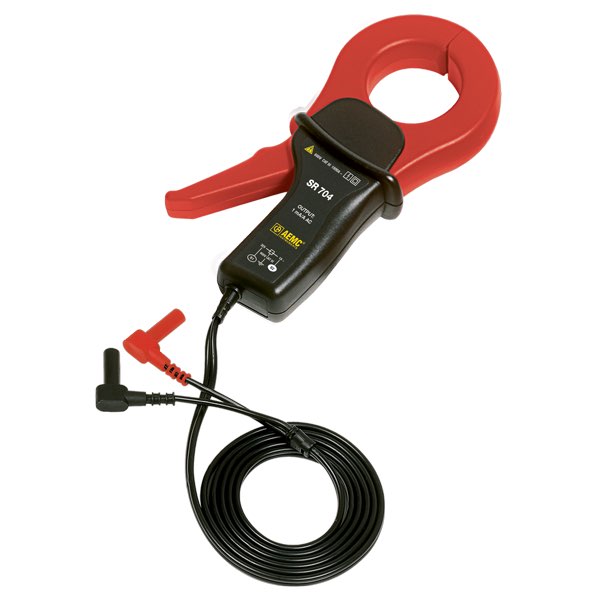

SR704 AC Current Probe (1000A, 1mA/A, Lead) HA* L**

SR704 AC Current Probe (1000A, 1mA/A, Lead) HA* L**

The SR704 is a general purpose 1000AAC current probe designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp measured in the jaw. The SR704 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift and wide frequency response are important.

• Measurement range of 1 mA to 1200 Aac
• Large jaw opening accommodates conductors up to two 500 MCM conductors
• Ergonomic design and easy operation
• Low phase shift for power measurements
• Available with mA output signals
• Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
• UL approved
