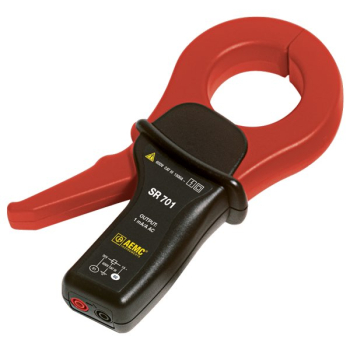

SR701 AC Current Probe (1000A, 1mA/A, Jack) HA* L

SR701 AC Current Probe (1000A, 1mA/A, Jack) HA* L

The SR701 is a general purpose 1000AAC current probe designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp measured in the jaw. The SR701 has jack output terminations that accept 4mm banana plugs. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift and wide frequency response are important.

• Measurement range of 1 mA to 1200 Aac
• Large jaw opening accommodates conductors up to two 500 MCM conductors
• Ergonomic design and easy operation
• Low phase shift for power measurements
• Available with mA output signals
• Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
• UL approved
