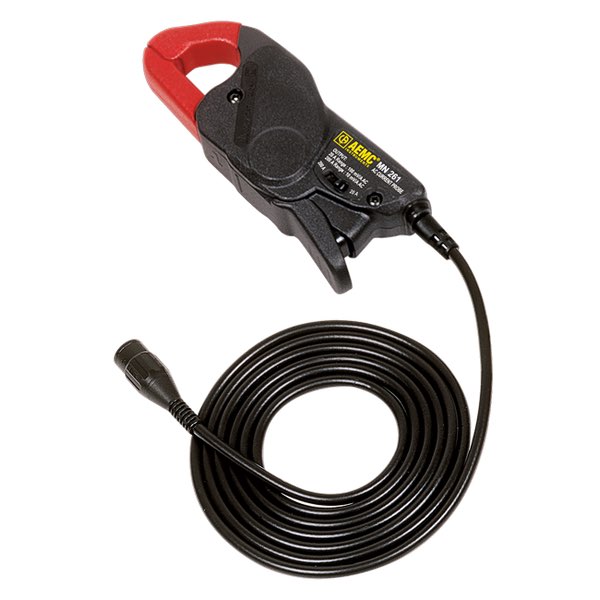

MN261 AC Current Probe (20A, 100mV/A & 200A, 10mV/A, BNC)

MN261 AC Current Probe (20A, 100mV/A & 200A, 10mV/A, BNC)

The MN255 is a high sensitivity probe with voltage outputs (100mV/A and 10mV/A) and combine two switch-selectable ranges of 20A and 200A, thus permitting accurate measurements at low and high levels. The MN255 has integral 5 ft (1.5m) leads terminated by shrouded banana plugs

• Small compact size
• Measurement ranges 0.1 to 24AAc; 0.5 to 240AAc
• Frequency response to 10kHz
• UL approved for both US and Canada
• Designed to EN61010, 600V CAT III
• Jaw opening accommodates 250kcmil cables
• Constructed with UL94VO flame retardant material
• Double insulated construction
