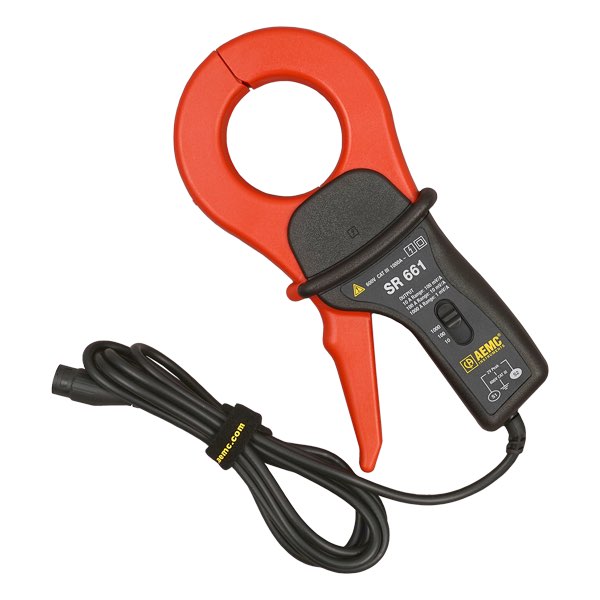

SR661 AC Current Probe (10A, 100mV/A; 100A, 10mV/A & 1000A, 1mV/A, BNC)

SR661 AC Current Probe (10A, 100mV/A; 100A, 10mV/A & 1000A, 1mV/A, BNC)

The SR661 is a range selectable probe that offers 3 switch selectable ranges of 10, 100 or 1000AAC. This probe has a voltage output proportional at the current measured in the jaw of the probe. The SR661 has an integral 6.5 ft (1.98m) lead terminated by BNC connector. The high accuracy and wide frequency response makes this probe an excellent choice for use with oscilloscopes.

• Measurement range of 100 mA to 1200 Aac
• Large jaw opening accommodates up to two 500 kcmil conductors
• Ergonomic design and easy operation
• Low phase shift for power measurements
• Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
• UL approved
