MR417 AC/DC Current Probe 40AAC, 60ADC, 10mV/A & 400AAC, 600ADC

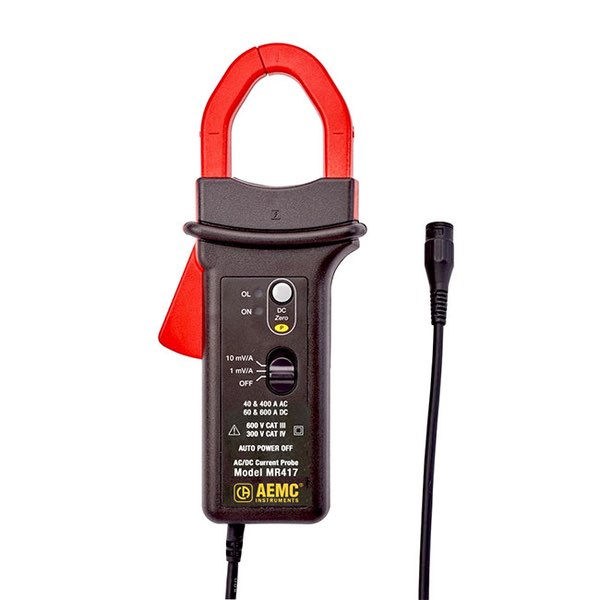

MR417 AC/DC Current Probe

The MR417 is a hall effect current probe with 2 ranges designed for oscilloscopes, waveform displaying instruments, and other frequency sensitive displaying instruments with BNC inputs. The probe has a 6.5 ft (2m) lead terminated by a BNC connector and can measure up to 400AAC and 600ADC. The probe is powered by a 9V battery or by a standard 5V external power supply via a micro-USB connector (not supplied).

The instrument's design includes internal temperature compensation.

• The jaw shape enables users to clamp on to cables or small bus bars
• Powered by battery or standard external 5 V power source via micro-USB connector
• Measures up to 1000 Aac and 1400 Adc (model dependent)
• Equipped with a Zero DC reset function
• Auto Power Off enable/disable function
• LED overload and low battery indicators
• Millivolt output compatible with most equipment and instruments
• Equipped with a coaxial lead and isolated BNC connectors for direct connection to an oscilloscope
• Battery life up to 50 hours
• Safety rating 600 V CAT III
