MR526 AC/DC Current Probe 100AAC, 150ADC, 10mV/A & 1000AAC, 1400ADC

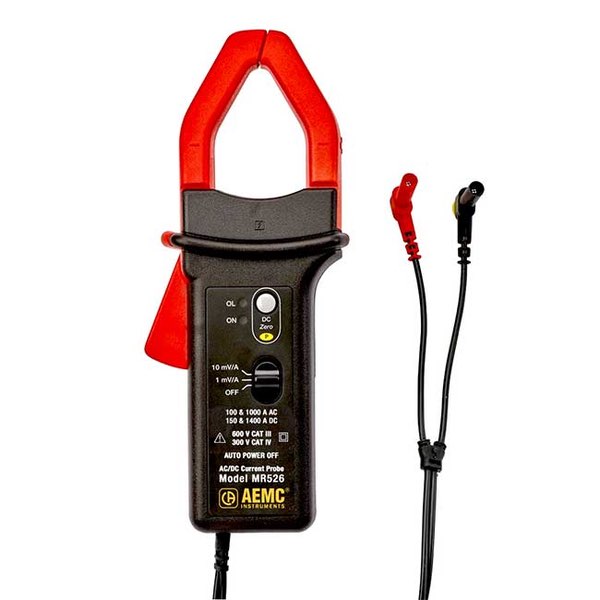

MR526 AC/DC Current Probe

The MR526 is a hall effect current probe with 2 ranges designed for DMM and Data loggers. The probe has a 5 ft (1.5m) lead terminated by 4mm safety banana plug and can measure up to 1000AAC and 1400ADC. The probe is powered by a 9V battery or by a standard 5V external power supply via a micro-USB connector (not supplied).

The instrument's design includes internal temperature compensation.

• The jaw shape enables users to clamp on to cables or small bus bars
• Powered by battery or standard external 5 V power source via micro-USB connector
• Measures up to 1000 Aac and 1400 Adc (model dependent)
• Automatic Zero DC reset function
• Auto Power Off enable/disable function
• Millivolt output compatible with most equipment and instruments
• Battery life up to 50 hours
• Safety rating 600 V CAT III
