ANM125-15A 15A 125VDC Mini Blade Fuse

SKU: ANM125-15A
Manufacturer: Optifuse
Manuf Part#: ANM125-15A
GTIN#:
Price:
$3.63
Quantity: 100+500+1000+
Price: $2.52$2.14$1.90
Qty: - +

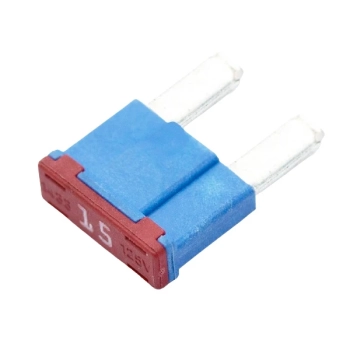

ANM125-15A 15A 125VDC Mini Blade Fuse

Smaller than standard Regular (ATO/ATC style) blade fuses, this fuse can control more circuits by occupying less space.

Ignition protected and filled with sand to cool vaporized metal that forms when the fuse blows, thus preventing it from ionizing and in turn stopping an arc from carrying current after the fusible link has melted.

Engineered to use in higher voltage systems that are designed to reduce the current requirements of modern vehicles with increasing power needs. Raising the voltage helps to reduce the size of the wiring and overall weight of vehicle helping to increase the efficiency and gas mileage.

  • Voltage Rating: 125V DC
  • Interrupting Rating: 1000A @ 125 VDC
  • Body: Nylon with 25% Fiberglass
  • Cover: Nylon with 25% Fiberglass, Dark Red
  • Terminals: Copper alloy, gal. Sn
  • 10 pc min order
