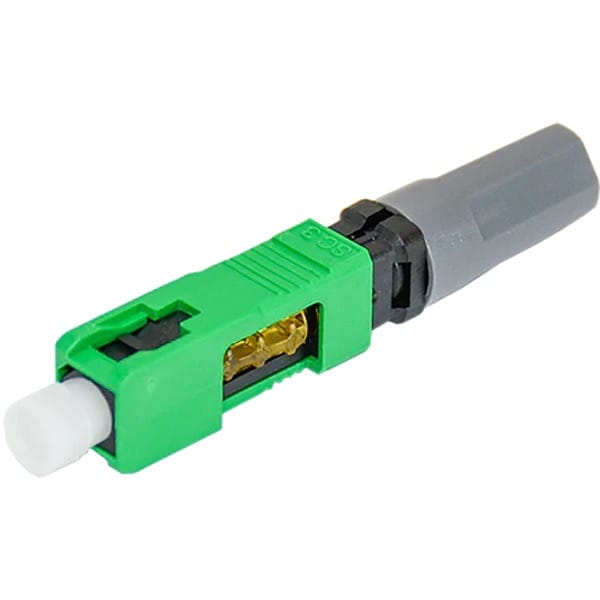

SMU-SCA SC/APC Single-Mode Click-On Fiber Connector

SMU-SCA SC Single-Mode Click-On Fiber Connector

TechLogix ECO Series™ field-installable fiber optic connectors are designed for quick, easy and reliable termination of 250μm, 900μm and 2.0mm fiber cables, including both distribution and zip-cord configurations.  Unlike other connectors which are marketed as “one-size fits all”, ECO Series™ connectors are specific to 250μm, 900μm and 2.0mm cables to ensure perfect alignment, reducing refraction and signal loss. And regardless of cable, a large built-in verification window, self-centering alignment groove and easy-to-press button for one-click termination ensures installation times around two minutes.

• SC type connectors
• Polish: APC (Angled)
• Color: Green

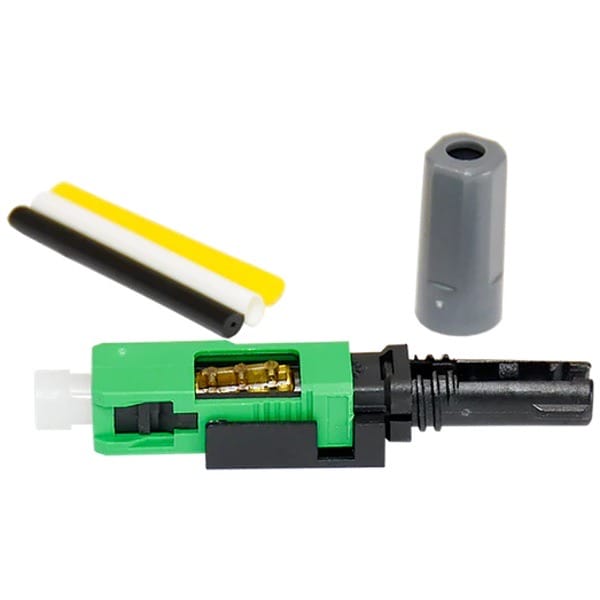

• Included Accesories: Build Up Tubes - 250um, 900um, 2mm
• Compatible Fiber Type: Single Mode (OS1, OS2) 9/125um
• Recommended Cable Type: 250um, 900um, 2.0mm, 3.0mm Distribution Style Zip-Cord Cord Style
• No proprietary tools required
• No epoxy, crimping or polishing required
• Built-in verification window showing proper termination
• Self-centering alignment groove for easy & reliable insertion of the fiber optic strand
• Built-in button for one click termination & locking jig release
• Average termination time around two minutes
• Re-usable (five or less termination cycles recommended)
