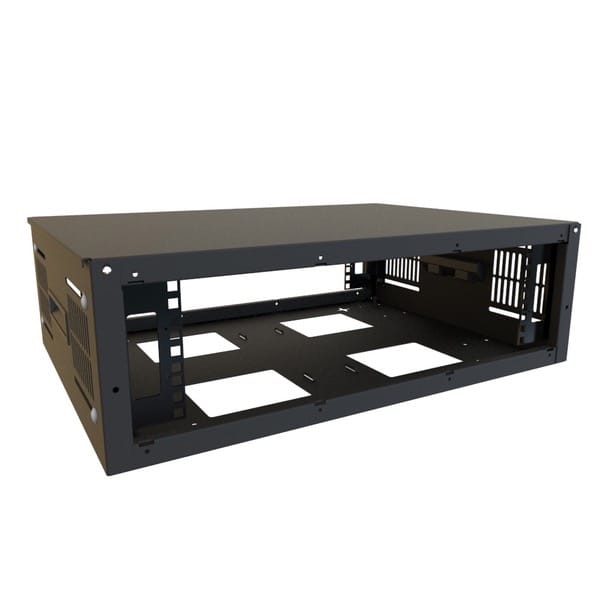

SDC243U17BK 3U Slim Wall/Floor Rack Cabinet

SDC243U17BK 3U Slim Wall/Floor Rack Cabinet

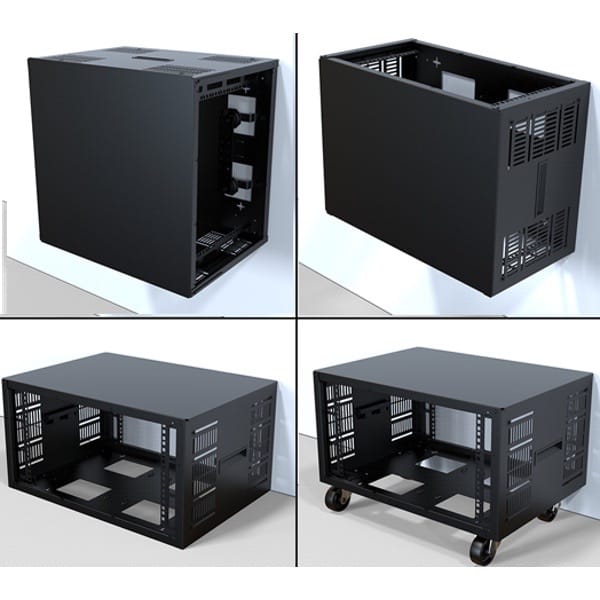

The SDC Series is a multi-use rack providing numerous options for equipment rack mounting. It is ideal for securing rack mount equipment in spaces where room for a traditional rack or cabinet is limited or not available. The modular design includes a body with numerous accessory options to suit your unique application.

• Usable Mouning Dimensions: 5.25H x 19.0W x 15.55D

Features

• 19" Mounting rail slots allow for adjustable depth rails and/or optional fan installation.
  • Mounting rails are easily removed for non-rack mounting equipment.
  • Starter pack of CAGKIT1032-10 screws and cage nuts included with 3U units or CAGKIT1032-50 screws and cage nuts included with 6U & 9U units.

• Removable cover panel for ease of equipment installation. Includes four (4) cutouts perfect for mounting over an electrical receptacle and/or for cable entry.
• Interior cable management lances.
• Removable plastic handles for side mounting storage.
• Optional surface mounted doors with quarter-turn lock and end cap available. Specifications
• Cabinet frame, removable cover and doors constructed in 16-gauge steel.
• Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are finished in smooth black powder paint.
• Suggest Load Ratings
  • Wall Mount (Rack Mounted) up to 150 lbs (68 kg).
  • Wall Mount (Rails removed) up to 50 lbs (22 kg).
  • Ceiling/ Under Desk Mount up to 150 lbs (68 kg).
  • Freestanding (with or without casters) up to 800 lbs (362 kg).
• Grounding studs provided on frame as well as side panels and doors.
• Finished in sand textured black powder paint.
• TAA compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America.

This item only ships prepaid ground within the 48 contiguous USA. Call for Expedited.
