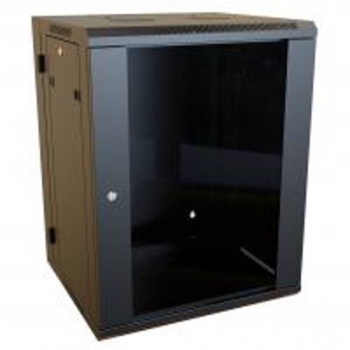

RB-SW15 Rack Basics 15U Swing-Out Wall Mount Cabinet

RB-SW15 Rack Basics 15U Swing-Out Wall Mount Cabinet

• Mounting Dimensions: 26.25H x 19.0W x 16.134D
• Double-hinged for easy rear access (body swings open to 120°).
• Constructed in light duty 16-gauge steel.
• Includes two (2) pairs of EIA compliant square hole punched rails with 19” mounting.
  • Starter pack of (25) M6 screws and cage nuts included.
  • For 10-32 hardware, see our CAGKIT Series.
• Rails are adjustable.
• Includes one (1) locking lightly smoked tempered glass reversible front door (hinged on right side as standard).
• Includes one (1) pair of locking removable side panels.
• Front and side of frame includes venting for air flow.
• Top, bottom and rear cable access.
• Provision for optional fans on top panel.
• Middle body section is not reversible, and hinges on the left side.
• Ships assembled - ready to install.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• Finished in black powder paint.
• Tested to 130 lbs (59 kg) of equipment load capacity.
• RoHS Compliant.
