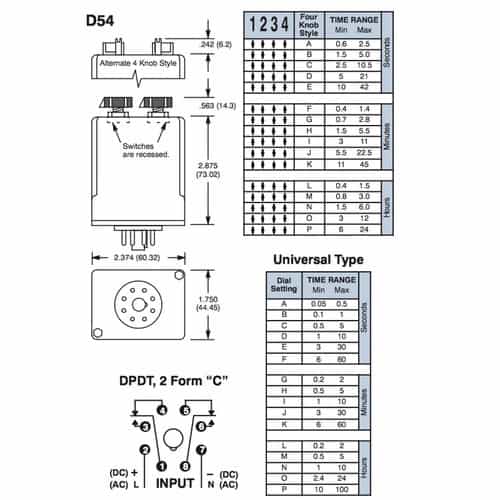

R26-11AD10-U 24V-240VAC/12-125VDC Time Delay Relay
RECYCLE TIMING − The first delay period begins when input voltage is applied. At the end of the first delay, or “OFF” period, the internal relay pulls in, and the second delay, or “ON” period begins.When the second delay period ends, the relay drops out. This recycling sequence will continue until the removal of input voltage. When input voltage is removed, the relay drops out.
- Universal Input Voltage
- 16 Time Ranges in Single Timer (0.05 sec. to 100 hrs.)
- User Sets Time Ranges No Math − Just Flip Switches
- Instructions Right on Unit
- Fine Tuning Knob for Precision Timing
- Pin for Pin Interchangeable with Timers in the Field − No Rewiring
- AC or DC Operation
- CMOS Digital Circuitry − 0.5% Repeatable Accuracy
- Rating: 10 Amps 240VAC or 30VDC, 1/3 HP, 240VAC or 120VAC, Pilot Duty 345VA, 120VAC or 240VAC, 50/60HZ
