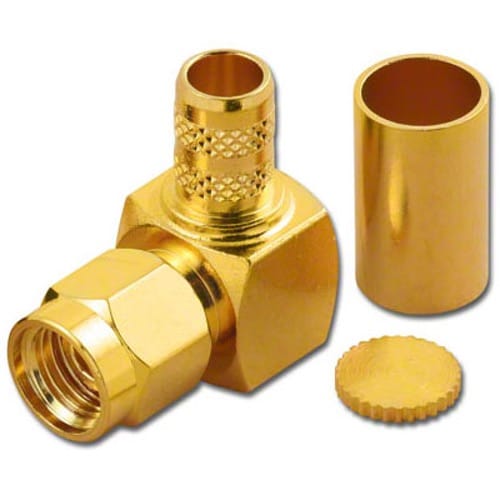

RPA-2475-L240 SMA RP Right-Angle Crimp Plug for LMR-240

RPA-2475-L240 SMA RP Right-Angle Crimp Plug

• Crimp Plug (Male) with Female Pin for LMR240
• Reverse Polarity connectors are designed for use in spread spectrum wireless applications where a non-standard interface is needed
• High performance Machined connectors.
• Operates in the 0 to 12.4 Ghz range.
• 50 Ohm impedance.
• Brass body with 3 microns of Gold over 50 microns of nickel plate.
• Contact pin is Beryllium copper with 30 microns of gold plate.
• Teflon insulator.
